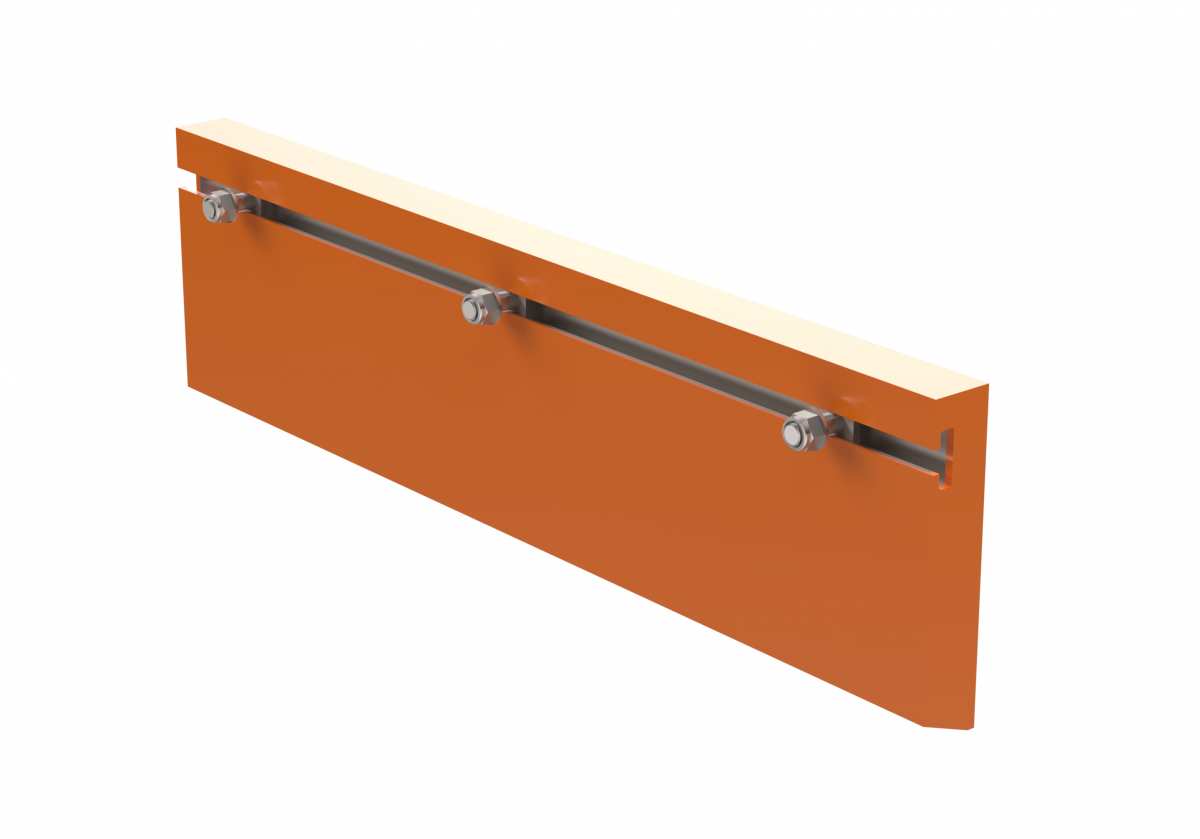

Martin^® Skirtboard Liner with T-Bolt Slot

Installed inside conveyor transfer point skirtboards, Martin^® Skirtboard Liner with T-Bolt Slot absorbs impact and abrasion and creates a dam to shield the sealing system from the weight of the material load, prolonging the life of the seal.

The Martin^® Skirtboard Liners feature a steel plate molded inside the urethane to prevent bond issues. The unique T-slot mounting interface allows the liner to be adjusted from outside the chute wall, eliminating the need for confined space entry. Liners are also stackable to line higher drop chutes.

Option for corrosion protection available: metal channel from (blank) mild steel covered by a thin film of urethane.

Features and Benefits:

• Improved sealing performance
  Creates a “dam” that shields the sealing system from material load and helps minimise fugitive material → less dust & spillage, cleaner transfer points, reduced housekeeping and cleanup costs, better compliance with environmental and safety standards
• Safer and easier maintenance
  Adjustable from outside the chute wall and eliminates need for confined space entry → safer working conditions, faster maintenance and reduced labour time

• Extended life of sealing system
  Protects the seal from direct impact and abrasion. Acts as a sacrificial wear surface absorbing material damage (general liner function) → longer service life of skirting and seals, lower replacement frequency,reduced maintenance costs
• High wear resistance & durability
  Designed to absorb impact and abrasion; uses urethane with embedded steel plate to prevent bond failure → reliable performance in harsh environments, less unexpected failures and downtime
• Flexible installation for different applications
  Stackable liners for higher drop chutes; adjustable mounting ensures optimal sealing throughout wear life → adaptable to various chute heights and configurations, future-proof solution for system upgrades
