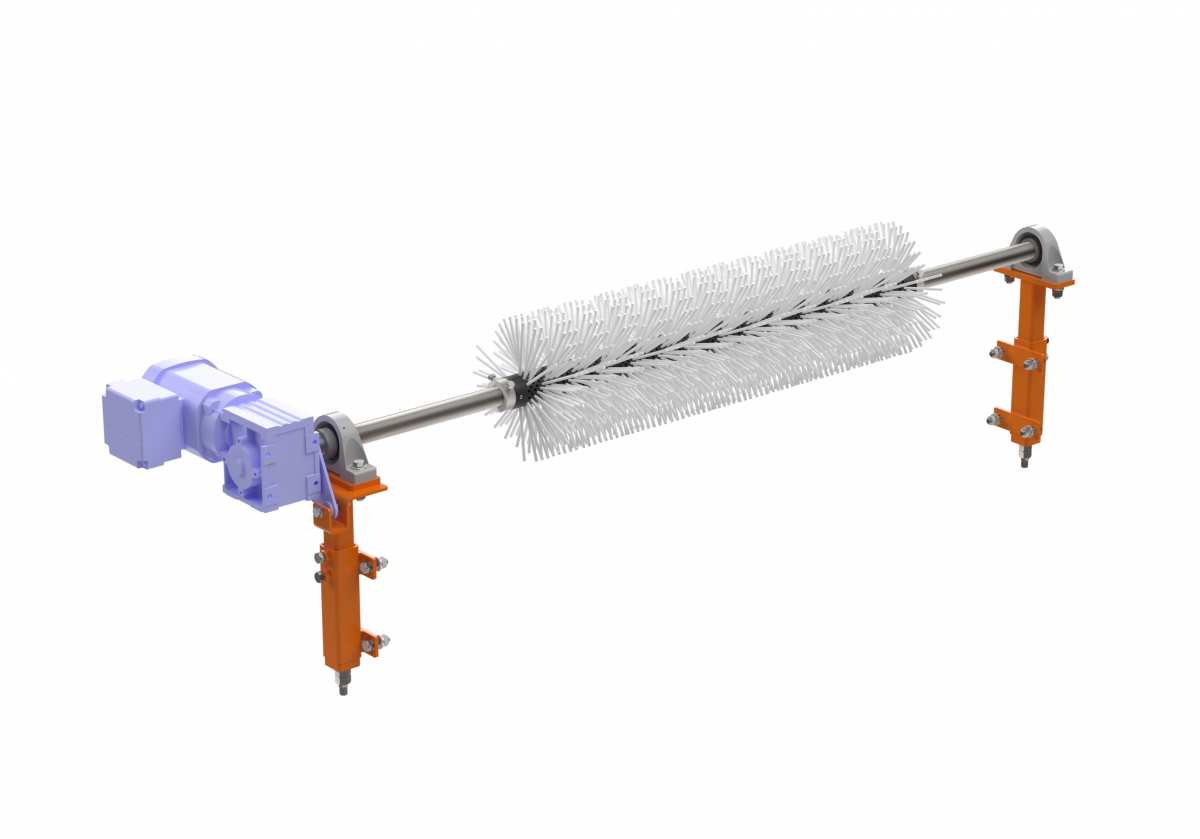

Brush Cleaner

Martin® Brush Cleaners are specially suited for the removal of fines and residue from ribbed, flighted, grooved or chevron conveyor belts. Versions of brush belt cleaners are available to suit your conditions and your budget.

Features and Benefits:

  • One or two-horsepower motor (depending on belt width) turns brush against belt motion.
  • The Martin® Spiral Brush Cleaner uses 0.038 inch (0.96 mm) polypropylene bristles wrapped in spiral around the hub.
  • The Martin® Strip Brush Cleaner uses 12 brush strips to form brush that sheds even moist material that would plug other brushes. Strips are made with 0.040 inch (1 mm) polypropylene bristles.


  • The Martin® Brush Cleaner is suited for light to medium duty applications, on belts from 18 to 72 inches (~400 to 2000 mm) operating at speeds up to fpm (m/sec).
  • The Martin® Brush Cleaner accommodates maximum 3/8" cleat height.


  • Available with polypropylene, oil tempered wire or nylon brushes.
  • Available with other bristle diameters.

Our technicians and engineers are available to provide expert advice and assistance on this product and all of your bulk material handling questions and problems. Please contact us today and let us help!

Product Specifications

Belt Width Up to 72 in (up to 2000 mm)
Belt Speed Up to 2,5 m/s
Temperature Between -20°C and 60°C
Corrosive Conditions No
Accommodates Mechanical Splices Yes
