DT2S Reversing Cleaner

Martin® DT2S Reversing Secondary Cleaner fits in narrow spaces. Slide-in/slide-out blade assembly allows quick belt cleaner service, minimizing downtime.

Features and Benefits:

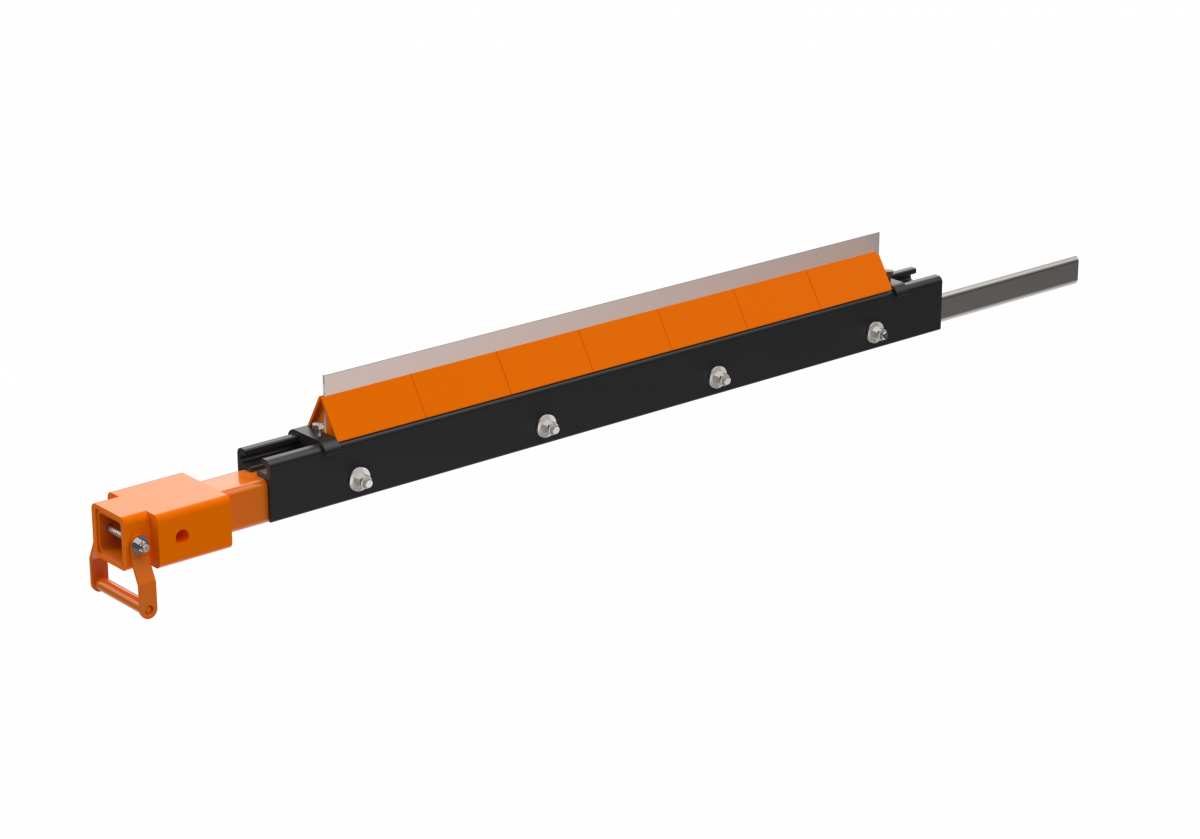

  • Slide-in/slide-out belt cleaner blade cartridge allows quick and easy blade service that minimizes conveyor downtime. Even when the cleaner is encrusted with material, one-half of the split frame can be removed to allow blade change
  • Effective belt cleaning reduces plant cleanup chores and prolongs life of conveying equipment
  • Can be installed on conveyors that roll back or run in two directions with proper blade selection
  • Lean profile minimizes space requirements, allows installation in narrow spaces

Applications:

  • Suited for medium to heavy-duty applications, on belts from 500 to 3000 mm operating at speeds up to 4.6 m/sec

Options:

  • Martin Engineering’s color-coded high performance urethanes available to suit application
  • Available with tungsten carbide reversing blade, stainless steel reversing blade and urethane reversing blade

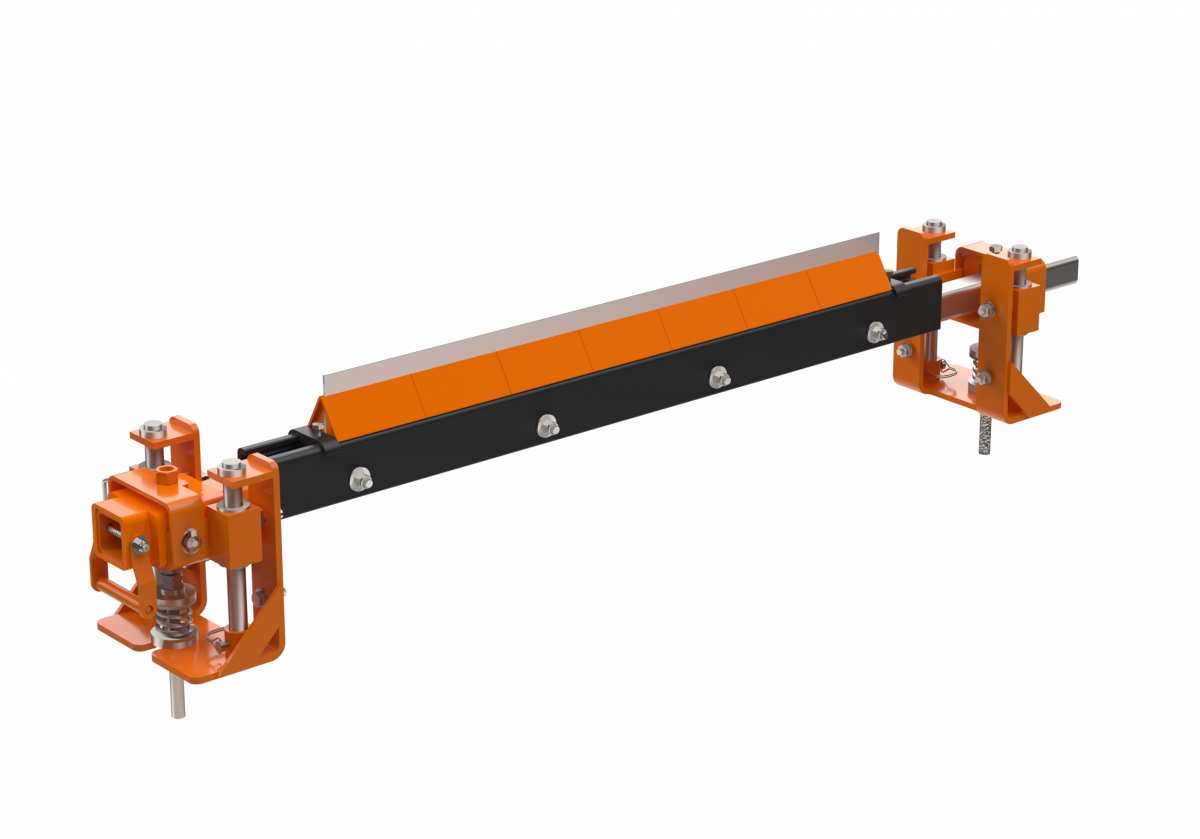

  • Martin® Spring Tensioner available

Our technicians and engineers are available to provide expert advice and assistance on this product and all of your bulk material handling questions and problems. Please contact us today and let us help!

Product Specifications

Belt Width 500 - 3000 mm
Belt Speed Up to 4,6 m/s
Temperature Between -40°C and 150 °C
Compatible with Reversing Belts or Roll Back Yes
Require Assistance?
Contact Us for Application Assistance

Resources

Brochure - Belt Cleaners Download
Tech Data Sheet - DT2S Reversing Cleaner Download
Operator Manual (Part 1) - Primary and Secondary Cleaners Download
Operator Manual (Part 2) - DT2S Reversing Cleaner Download

View Additional Resources
